victron-energy-domoticz
Domoticz plugins for Victron Energy Multiplus and serveral modules that can be reached using modbus
Requirements
You need to have a Victron Energy GX (what ever the one you have) and have setup IP on the system.
See Modbus Configuration for more information
Installation of plugin
Install pip3:
sudo apt install python3-pip
Install domoticz:
curl -sSL install.domoticz.com | sudo bash
Make sure that the plugins folder exists in the domoticz folder.
Install the plugin:
cd domoticz
git clone https://github.com/xbeaudouin/victron-energy-domoticz.git
cd plugins
ln -s ../victron-energy-domoticz/mppt .
Go to the plugin folder and install all required addons:
cd domoticz/plugins/mppt
sudo pip3 install -r requirements.txt
Once that is done, restart domoticz:
sudo service domoticz.sh restart
MPPT plugin
Once plugins installed, a new hardware will be available : 'Victron Energy MPPT over GX + Modbus"
To add the MPPT plugin add the following :
- Name : Victron_MPPT_1 (for example)
- GX IP Address : the IP address of your GX
- GX port Number : 502 should good (this is the default, but in case of this change)
- Modbus address : 229 (or depending of your setup you can have several MPPT on your system, adapt it as you need)
- If you want plenty of debug stuff (usefull to fix a bug) you can enable that.
MPPT Screenshot

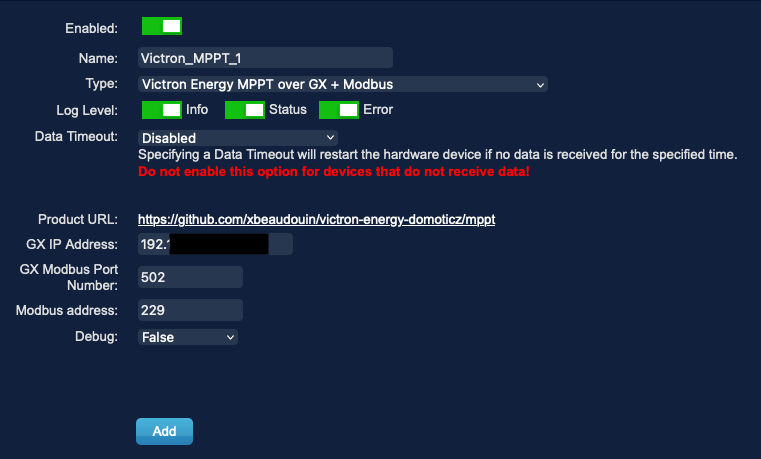

MPPT Setup

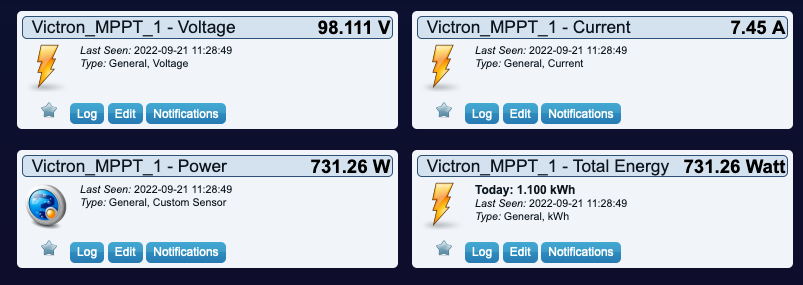

MPPT Devices

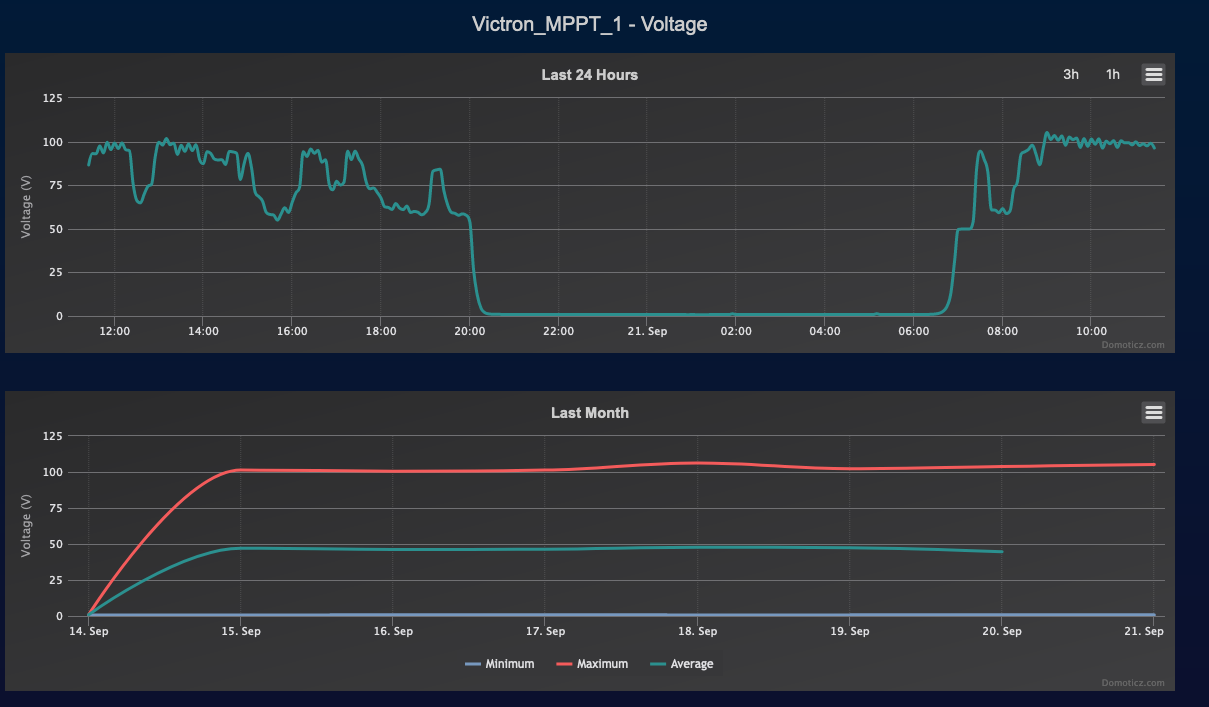

MPPT Voltage

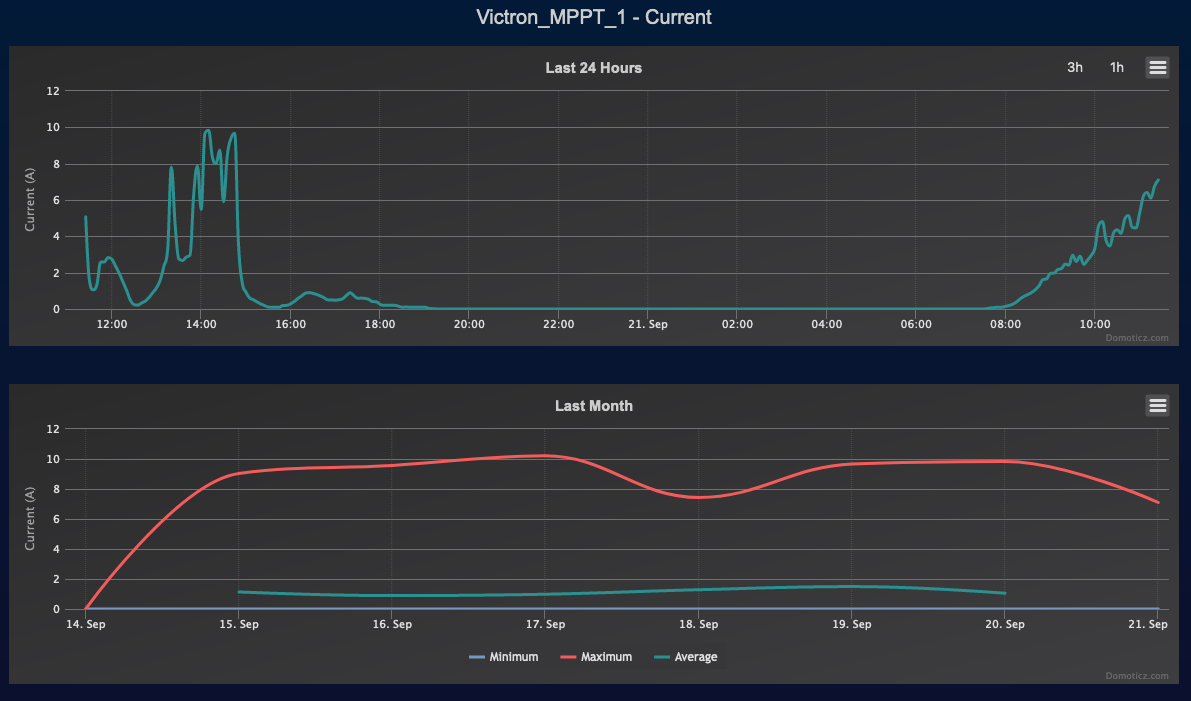

MPPT Current
MPPT Power
MPPT kWh
